Ignition SCADA: Batch Process Supervision
Ignition SCADA
Modbus TCP
PLC
Alarm Management
MySQL
Historian
Project Videos
Project Overview

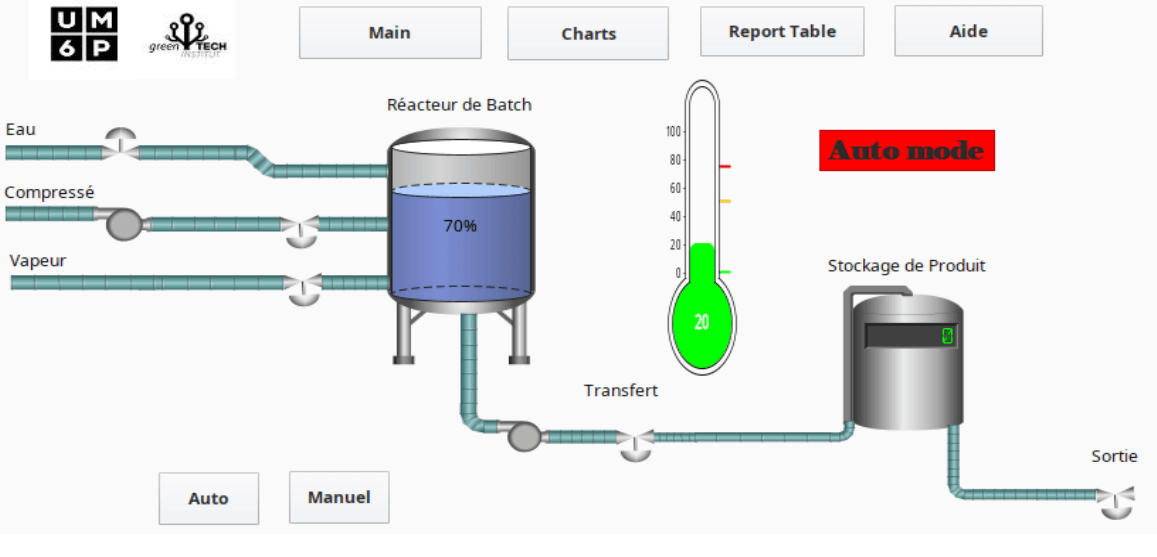

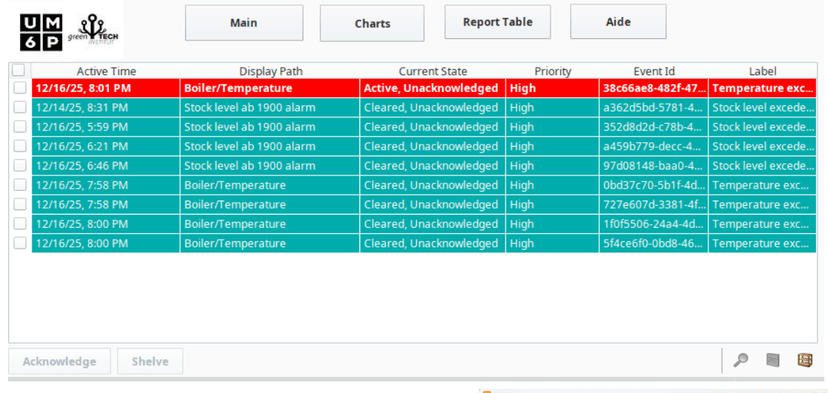

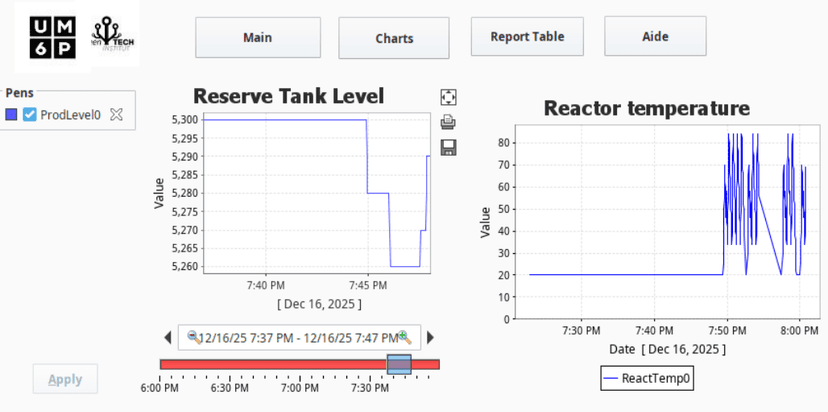

An Ignition SCADA project for a batch mixing process. Dynamic synoptic screens reflect real-time tank levels, valve states, and motor status; an alarm pipeline adds priority levels and acknowledgement workflows; trend charts track process variables; and all tag data is historised into MySQL for post-batch analysis. The system connects to a simulated PLC via Modbus TCP.
